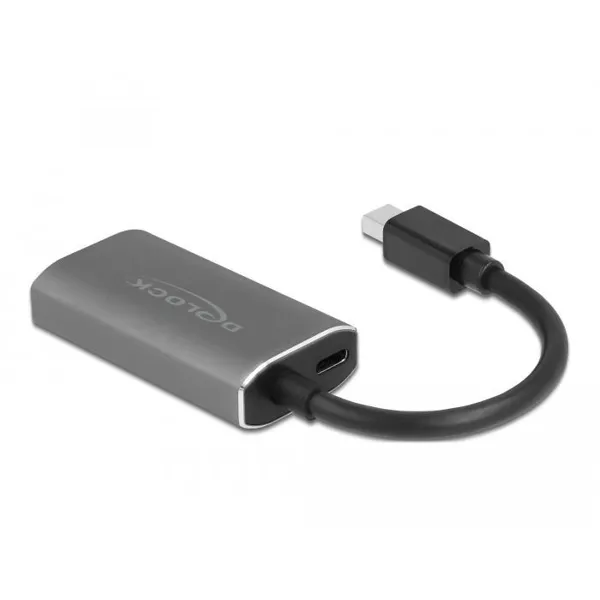

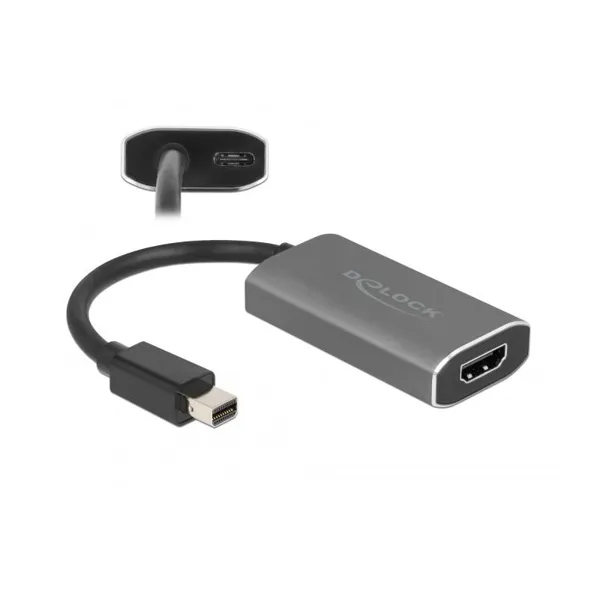

With this adapter from Delock, an HDMI monitor, beamer or TV can be connected to a free mini DisplayPort interface of a device. Due to the small dimensions, the adapter is an ideal companion for on the go.

The adapter supports a resolution of up to 8K Ultra HD (7680 x 4320 @ 60 Hz), which is four times the resolution of 4K, and is backwards compatible with 4K Ultra HD and Full HD 1080p. Thus, the Delock adapter can be used for applications such as photo and video editing, digital video walls and gaming.

The support of the HDR (High Dynamic Range) function allows the display on the screen to be shown in sharper, clearer and more vivid colours.

The adapter offers active conversion, so it is also suitable for graphics cards that cannot output DP++ signals.

• Connectors:
  1 x mini DisplayPort male
  1 x HDMI-A female
  1 x USB Type-C™ female (optional for power supply)
• Chipset: Realtek RTD2173
• DisplayPort 1.4 specification
• Resolution:
  with DSC: 7680 x 4320 @ 60 Hz
  without DSC: 7680 x 4320 @ 30 Hz (depending on system and connected hardware)
• Transmission of audio and video signals
• Supports 3D displays
• Supports HDR10
• Supports HDCP 1.4 and 2.2
• Plug & Play
• Housing material: aluminium
• Cable length without connectors: approx. 20 cm
• Colour: black / grey

System requirements

• One free mini DisplayPort socket
