Delock – 64077 – U.2 to M.3 / NF1 converter

Brand:
Delock

35,69 €

incl. 19% VAT plus shipping costs

An M.3 / NF1 (NGSFF) SSD can be connected to this converter by Delock. An M.3 module with 110 mm length and 30 mm width can be connected to the converter. The converter can be integrated into the system internally via the U.2 68 pin interface.For…

Show article information
In stock
When you purchase this item you will receive. 35 Points
Bulk PriceQuantity (from)Quantity (to)
35,69 € 1 19
34,21 € 20 49
33,91 € 50 199
33,61 € 200 ∞
Delivery time: 3-5 Workdays
Add to quote request
SKU 373314
EAN 4043619640775
MPN 64077
Categories ,
Tags , ,

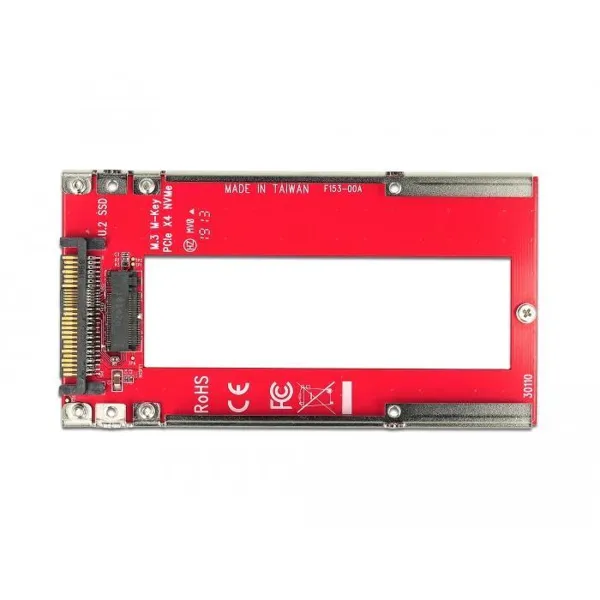

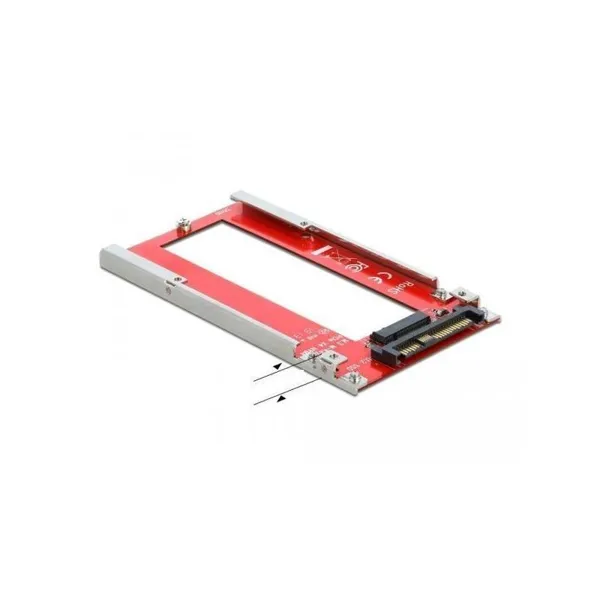

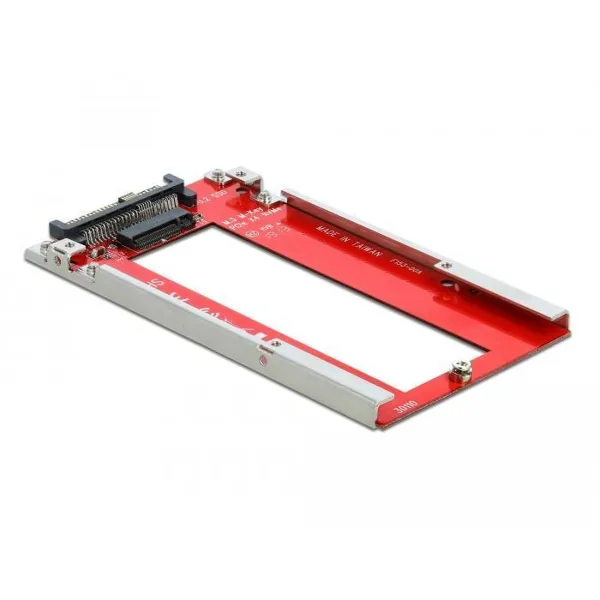

An M.3 / NF1 (NGSFF) SSD can be connected to this converter by Delock. An M.3 module with 110 mm length and 30 mm width can be connected to the converter. The converter can be integrated into the system internally via the U.2 68 pin interface.
For better cooling, the circuit board of the converter has a recess which is located directly under the inserted SSD. This makes it possible to attach an optional heat sink to the underside of the SSD.

Specification
– Connectors: 1 x U.2 SFF-8639 plug > 1 x M.3 / NF1 slot
– Interface: PCIe / NVMe
– Supports M.3 / NF1 modules in 30110 format
– Supports M.3 / NF1 SSD up to 4.8 mm thick
– Supports NVM Express (NVMe)
– Data transfer rate up to 32 Gbps
– Bootable, from UEFI version 2.3.1
– Dimensions (LxWxH): approx. 130 x 70 x 7 mm
System requirements
– Linux kernel 4.6.4 or higher
– Windows 7/7-64/8.1/8.1-64/10/10-64
– One free U.2 SFF-8639 interface
Package contents
– Converter

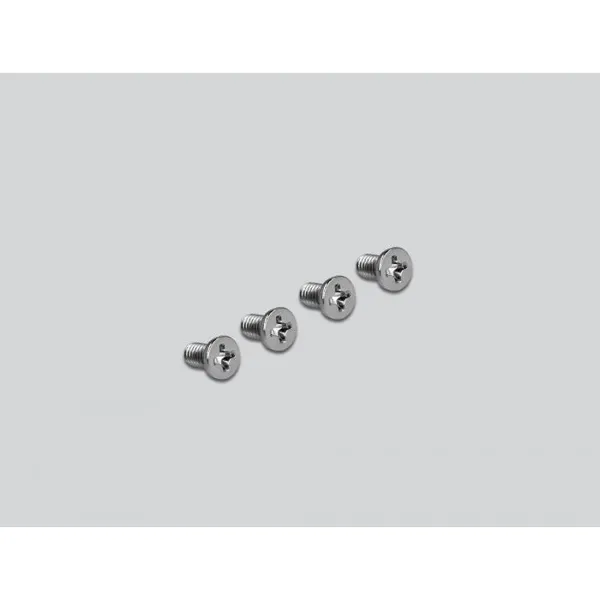

– Mounting material
– Operating instructions
