Delock – 86487 – RJ45 plug field-wireable Cat.8.1 metal
incl. 19% VAT plus shipping costs

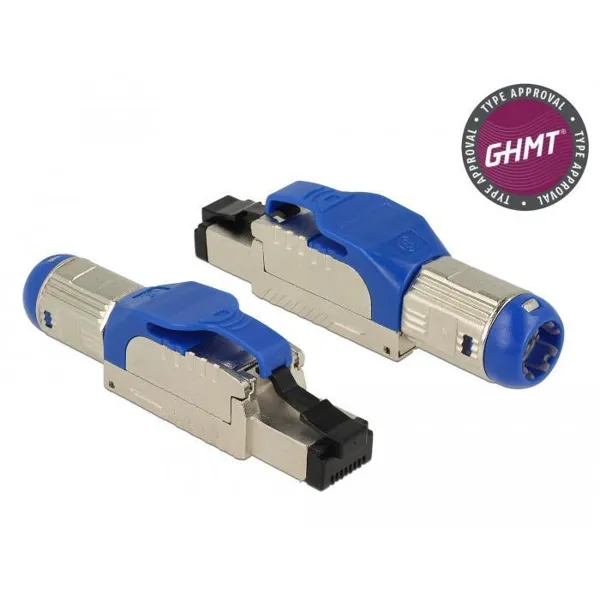

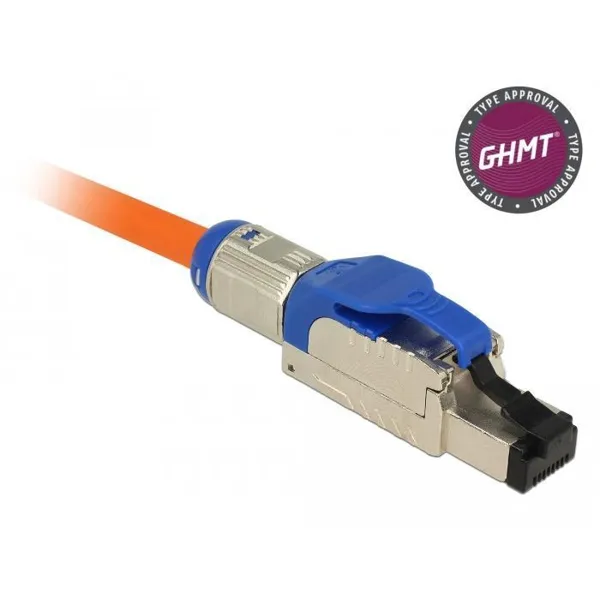

This RJ45 plug by Delock can be used to connect network cables. The plug can be fitted to various cable types without tools and in a time-saving manner. Specification- Connections: 1 x RJ45 plug- Cable routing 180°- Shielded (STP)- Cat.8.1…
SKU | 372741 |
---|---|
EAN | 4043619864874 |
MPN | 86487 |
Categories | Cables & Connectors & Adapters, Connectors & Adapters |
Tags | Delock, RJ45, Stecker/Steckverbinder |
This RJ45 plug by Delock can be used to connect network cables. The plug can be fitted to various cable types without tools and in a time-saving manner.
Specification
– Connections: 1 x RJ45 plug
– Cable routing 180°
– Shielded (STP)
– Cat.8.1 specification
– GHMT certified: 2 Connector Channel (30m), Copper, Class I up to 2GHz,
– ISO/IEC 11801-1 Ed.1.0 (2017-11)
– Screwable strain relief
– Material: die-cast zinc
– Assignment in accordance with TIA-568A/B
– For solid and stranded conductors up to 0.573 mm (23 – 26 AWG)
– For cable diameters of 7.0 – 8.5 mm
– Dimensions (LxWxH): approx. 66.0 x 18.4 x 13.8 mm

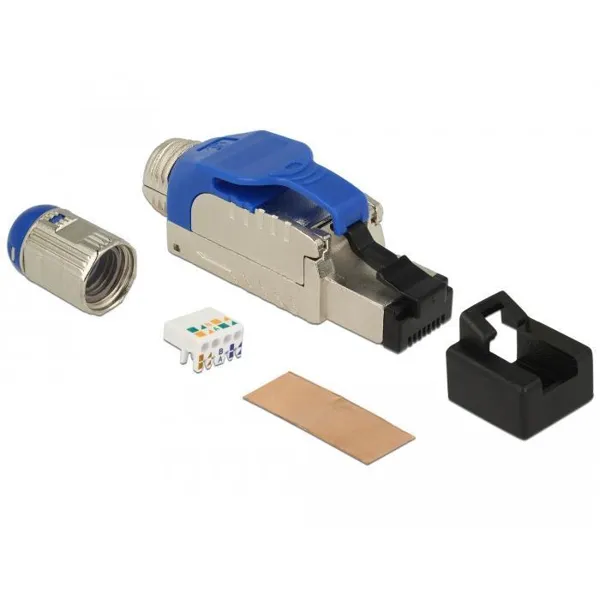

Package contents
– RJ45 plug
– Threading aid
– Dust protection
Packaging
– Resealable bag
