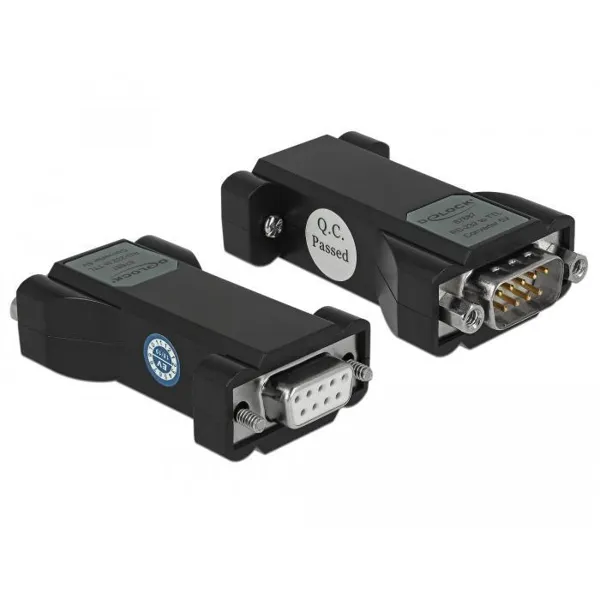

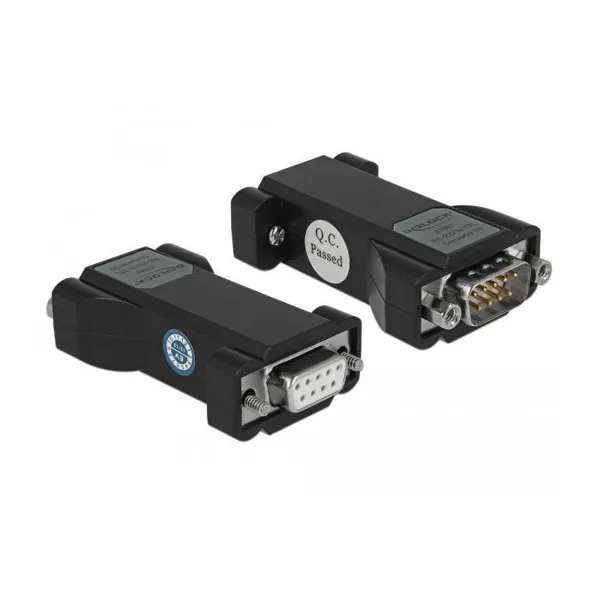

Delock – 87687 – Converter 1 x Serial RS-232 DB9 female to 1 x Serial TTL / CMOS 5 V DB9

Brand:
Delock

14,54 €

incl. 19% VAT plus shipping costs

This converter for RS-232 to serial TTL / CMOS from Delock converts signals from RS-232 to compatible TTL / CMOS 5 V levels and is suitable for connection to industrial controllers, level converters, microcontrollers, etc.. The converter can be…

Show article information
In stock
When you purchase this item you will receive. 14 Points
Bulk PriceQuantity (from)Quantity (to)
14,54 € 1 19
13,96 € 20 49
13,84 € 50 199
13,72 € 200 ∞
Delivery time: 3-5 Workdays
Add to quote request
SKU 367322
EAN 4043619876877
MPN 87687
Categories ,
Tags , ,

This converter for RS-232 to serial TTL / CMOS from Delock converts signals from RS-232 to compatible TTL / CMOS 5 V levels and is suitable for connection to industrial controllers, level converters, microcontrollers, etc.. The converter can be screwed directly between two DB9 connectors without an additional power supply.

Specification

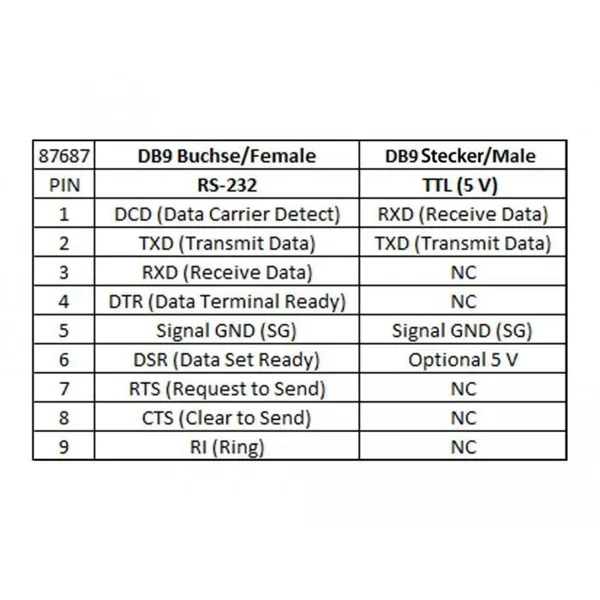

  • Connectors:

1 x Serial RS-232 DB9 female with screws
1 x Serial TTL / CMOS DB9 male with nuts

  • Automatic data flow control
  • Plug & Play
  • Data transfer: asynchronous, full duplex
  • Data transfer rate: 300 bps – 115.2 Kbps
  • ±3 kV ESD protection for all serial signals
  • Housing material: plastic
  • Colour: black
  • Operating temperature: -40 °C ~ 85 °C
  • Relative humidity: 5 – 95 % (non-condensing)
  • Dimensions (LxWxH): approx. 63 x 34 x 18 mm
  • Bus power from RS-232: TXD, RTS or DTR
  • Requires no external power supply

System requirements

  • Device with a free RS-232 port

Package contents

  • Converter RS-232 to TTL / CMOS

Packaging

  • Box
