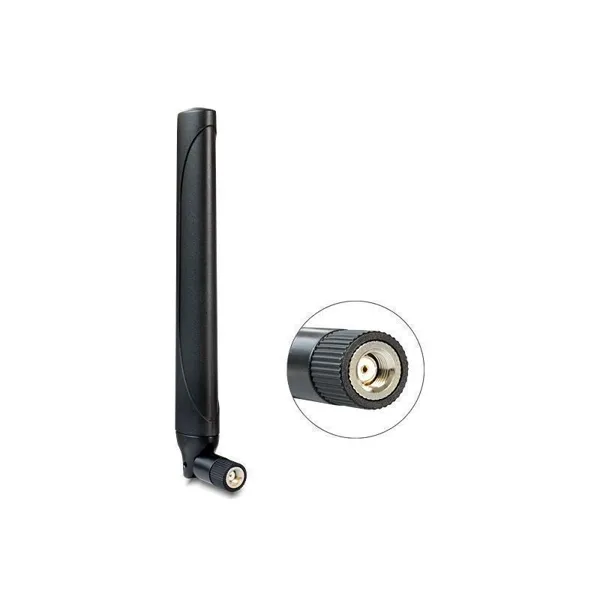

This GSM/UMTS/LTE antenna can be connected to a GSM/UMTS/LTE device with RP-SMA connector to receive and transmit signals.

• Connectors: RP-SMA connector
• Frequency range: 790 – 870 MHz, 1710 – 1880 MHz, 1920 – 2170 MHz, 2400 – 2700 MHz
• Antenna gain: -0.9 – 0.6 dBi @ 790 – 870 MHz, 0.7 – 1.8 dBi @ 1710 – 1880 MHz, 1.3 – 1.9 dBi @ 1920 – 2170 MHz, 0.9 – 2.3 dBi @ 2400 – 2700 MHz
• Impedance: 50 Ohm
• Polarisation: Linear, vertical
• VSWR: 4.0
• Operating temperature: -10°C ~ 55°C
• Housing material: ABS
• Colour: Black
• Length: approx. 197.10 mm (with tilt joint), approx. 167.00 mm (without tilt joint)
• Diameter: approx. 25.40 mm (tip), approx. 28.00 mm (max.), approx. 13.50 mm (RP-SMA)
