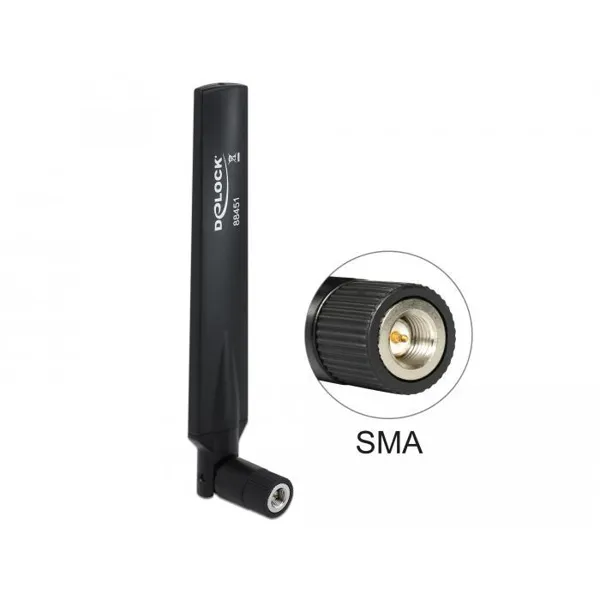

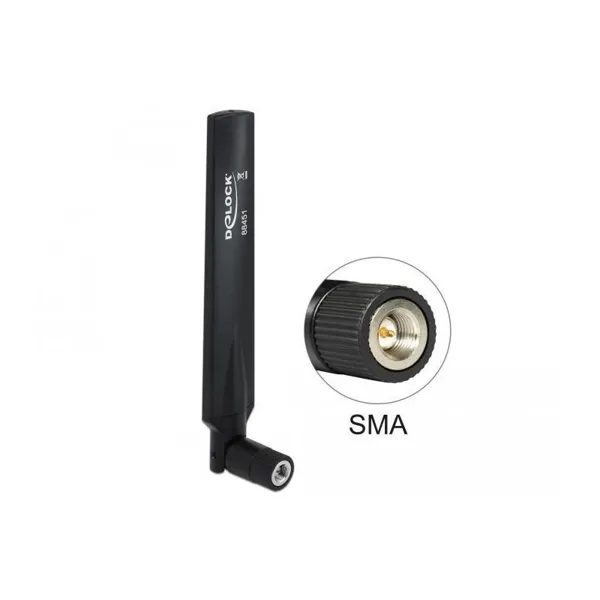

Delock – 88451 – LTE antenna SMA connector 1 – 4 dBi omnidirectional with tilt joint black

This GSM / UMTS / LTE antenna can be connected to a GSM / UMTS / LTE device with SMA connector to receive and transmit signals.

– Connectors: SMA connector
– Frequency range:
790 – 960 MHz
1710 – 2170 MHz
2570 – 2620 MHz
– Antenna gain:
1.0 – 3.5 dBi @ 790 – 960 MHz
2.0 – 4.0 dBi @ 1710 – 2170 MHz
3.0 – 4.0 dBi @ 2570 – 2620 MHz
– Impedance: 50 Ohm
– Polarisation: linear, vertical
– VSWR: 4.0
– Operating temperature: -10 °C ~ 55 °C
– Housing material: ABS
– Colour: black
– Length:
approx. 163.10 mm (with tilt joint)
approx. 137.00 mm (without tilt joint)
– Diameter:
approx. 19.60 mm (tip)
approx. 21.60 mm (max.)
approx. 13.50 mm (SMA)
