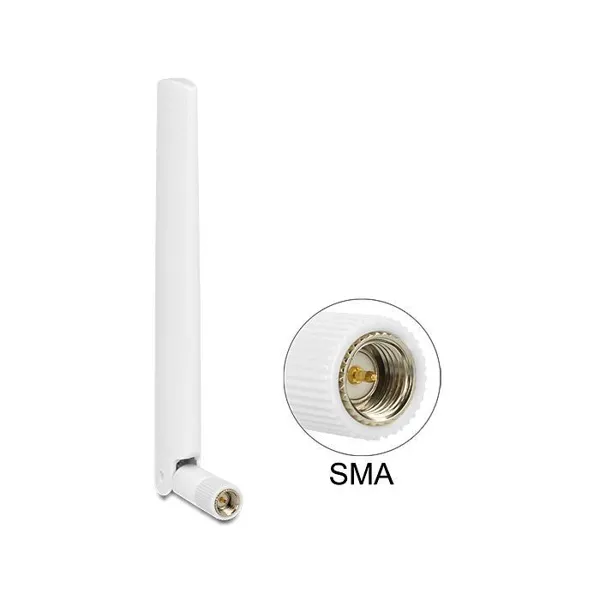

Delock – 88790 – LTE antenna SMA connector 1 – 2.5 dBi omnidirectional with tilt joint white

Brand:
Delock

12,64 €

incl. 19% VAT plus shipping costs

This GSM / UMTS / LTE antenna can be connected to a GSM / UMTS / LTE device with SMA connector to receive and transmit signals. Connectors: SMA connector Frequency range: 790 – 870 MHz, 1710 – 1880 MHz, 2500 – 2690 MHz Antenna gain: -1.0 – 0.0 dBi @…

Show article information
In stock
When you purchase this item you will receive. 12 Points
Bulk PriceQuantity (from)Quantity (to)
12,64 € 1 19
12,12 € 20 49
12,01 € 50 199
11,91 € 200 ∞
Delivery time: 3-5 Workdays
Add to quote request
SKU 357797
EAN 4043619887903
MPN 88790
Categories , ,
Tags , ,

This GSM / UMTS / LTE antenna can be connected to a GSM / UMTS / LTE device with SMA connector to receive and transmit signals.

  • Connectors: SMA connector
  • Frequency range: 790 – 870 MHz, 1710 – 1880 MHz, 2500 – 2690 MHz
  • Antenna gain: -1.0 – 0.0 dBi @ 790 – 870 MHz, -0.5 – 0.5 dBi @ 1710 – 1880 MHz, 0.5 – 2.5 dBi @ 2500 – 2690 MHz
  • Impedance: 50 Ohm
  • Polarisation: Linear, vertical
  • VSWR: 3.0
  • Operating temperature: -10°C ~ 55°C
  • Housing material: ABS
  • Colour: White
  • Length: approx. 137.70 mm (with tilt joint), approx. 115.00 mm (without tilt joint)
  • Diameter: approx. 18.80 mm (tip), approx. 10.00 mm (SMA)
