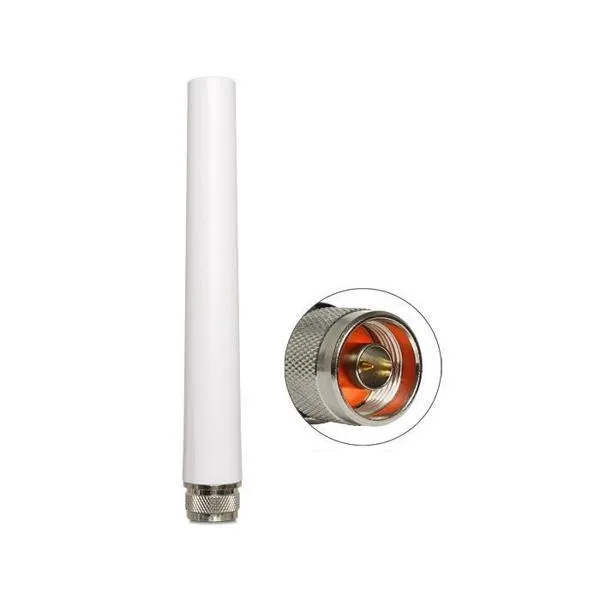

Delock – 88980 – LTE antenna N connector 2.5 dBi omnidirectional rigid white outdoor Delock

Brand:

42,48

You can install this LTE antenna outdoors and indoors and use it to receive different LTE bands. It is fully compatible with UMTS, GSM, Bluetooth, ZigBee and WLAN 2.4 GHz. Connection: N connector LTE Band: 1-10/12/13/17/19/25/29/33-39 Frequency range:…

In stock
When you purchase this item you will receive. 42 Points
Bulk PriceQuantity (from)Quantity (to)
42,48  1 19
40,72  20 49
40,36  50 199
40,01  200
Delivery time: 3-5 Workdays
SKU 357819
EAN 4043619889808
MPN 88980
Categories , ,
Tags , ,

You can install this LTE antenna outdoors and indoors and use it to receive different LTE bands. It is fully compatible with UMTS, GSM, Bluetooth, ZigBee and WLAN 2.4 GHz.

  • Connection: N connector
  • LTE Band: 1-10/12/13/17/19/25/29/33-39
  • Frequency range: 698-791 / 824-960 / 1710-2170 / 2500-2700 Mhz
  • GSM: 710/850/900/1800/1900
  • UMTS Band: I-X/XII/XIII/XIX
  • ZigBee 868~870 MHz, 902~928 MHz, 2405~2480 MHz
  • WLAN 2,4 GHz
  • DECT
  • Antenna gain: 0.5 ~ 2.5 dBi
  • Impedance: 50 Ohm
  • VSWR: 3.5:1 max
  • Operating temperature range: -40°C ~ 70°C
  • Housing material: ABS UV protected
  • Dimensions (LxØ): approx. 166.5 x 18.3 mm
  • Diameter N connector: 22.5 mm

System requirements

  • One unit with free N connection
