Delock – 90495 – Adapter USB Type-C™ to 4 x Serial RS-232 DB9 with 15 kV ESD protection

Brand:
Delock

116,94 €

incl. 19% VAT plus shipping costs

Delock Adapter USB Type-C™ to 4 x Serial RS-232 DB9 with 15 kV ESD protection This USB Type-C™ to serial adapter from Delock provides four RS-232 DB9 ports for printers, meters, controllers, IoT devices, etc. On each of the RS-232 ports, three LEDs…

Show article information
In stock
When you purchase this item you will receive. 116 Points
Bulk PriceQuantity (from)Quantity (to)
116,94 € 1 19
112,10 € 20 49
111,12 € 50 199
110,15 € 200 ∞
Delivery time: 3-5 Workdays
Add to quote request
SKU 352127
EAN 4043619904952
MPN 90495
Categories ,
Tags ,

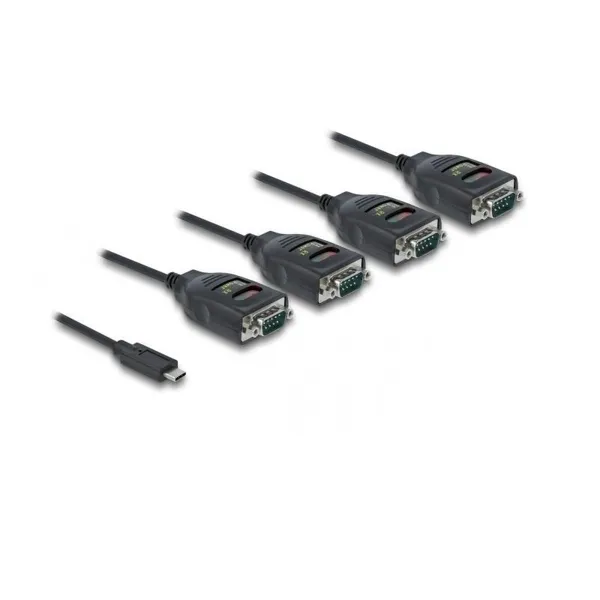

Delock Adapter USB Type-C™ to 4 x Serial RS-232 DB9 with 15 kV ESD protection

This USB Type-C™ to serial adapter from Delock provides four RS-232 DB9 ports for printers, meters, controllers, IoT devices, etc. On each of the RS-232 ports, three LEDs indicate the transmit and receive status as well as the USB voltage.

System requirements:

  • Linux Kernel 4.9 or higher
  • Mac OS 10.15 or higher
  • Windows 8.1/8.1-64/10/10-64/11
  • PC or notebook with a free USB Type-C™ or Thunderbolt™ 3 port
  • Connectors: 1 x USB Type-C™ male; 4 x serial RS-232 DB9 male
  • Serial connector with nuts
  • Chipset: FTDI FT231XS
  • Data transfer rate up to 460.8 Kbps
  • FIFO: 512 byte – RX
  • FIFO: 512 byte – TX
  • Data bits: 7, 8
  • Stop bits: 1, 2
  • Parity bit: even, odd, none, marked, empty
  • Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
  • LED colour: red, orange, green
  • ±15 kV ESD protection for all serial signals

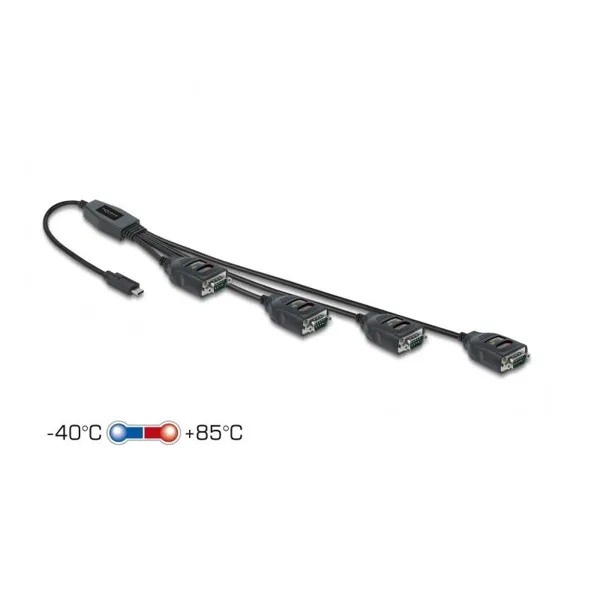

  • Operating temperature: -40 °C ~ 85 °C
  • Cable length without connections: approx. 63 cm
Weight 0,2 kg
Dimensions 18 × 18 × 5 cm
Produkttyp

Serial cable
Color

black
Connection A

USB C
Connection B

DB9
Cable length

0,6m
