Introduction

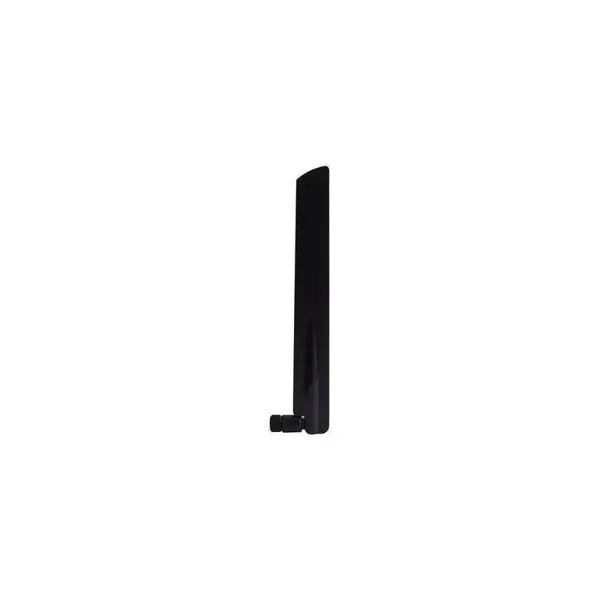

The ANT-5G-ASM-07 Series is an omnidirectional lightweight compact antenna suitable for GSM, UMTS, LTE, and 5G NR bands. The antenna provides a gain of 7 dBi and is designed to operate in temperatures ranging from -40 to 85°C.

Antenna Characteristics
– Frequency: 617 to 960, 1710 to 2170, 2300 to 2690, 3300 to 3800, 4200 to 4700, 5000 to 5925 MHz
– Antenna Type: Omni-directional

Typical Antenna Gain:
– 1.29 dBi @ 617 to 698 MHz
– 2.00 dBi @ 698 to 824 MHz
– 1.29 dBi @ 824 to 960 MHz
– 3.77 dBi @ 1710 to 1880 MHz
– 4.55 dBi @ 1850 to 1990 MHz
– 5.49 dBi @ 1920 to 2170 MHz
– 5.21 dBi @ 2300 to 2690 MHz
– 5.14 dBi @ 3300 to 3800 MHz
– 6.57 dBi @ 4200 to 4700 MHz
– 7.72 dBi @ 5000 to 5925 MHz

– Connector: SMA (male)
– Impedance: 50 ohms
– Polarization: Linear, Vertical
– HPBW/Horizontal: 360°

V.S.W.R.:
– < 7.5 @ 617 to 698 MHz
– < 4.5 @ 698 to 824 MHz
– < 4.4 @ 824 to 960 MHz
– < 1.9 @ 1710 to 1880 MHz
– < 2.7 @ 1850 to 1990 MHz
– < 4.1 @ 1920 to 2170 MHz
– < 2.1 @ 2300 to 2690 MHz
– < 2.5 @ 3300 to 3800 MHz
– < 1.9 @ 4200 to 4700 MHz
– < 2.0 @ 5000 to 5925 MHz

Physical Characteristics
– Weight: 35.8 g (0.08 lb)
– Length: 220 mm (8.66 in)
– Radome Color: Black
– Radome Material: Plastic
– Installation: Straight mount

Environmental Limits
– Operating Temperature: -40 to 85°C (-40 to 185°F)
– Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
– Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)
