Moxa has a large portfolio of industrial unmanaged switches specifically designed for industrial Ethernet infrastructure. Our unmanaged Ethernet switches meet the stringent standards required for operational reliability in harsh environments.

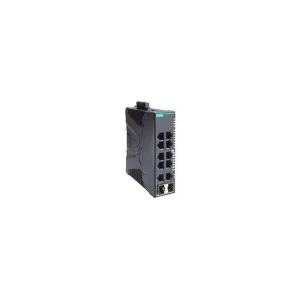

Unmanaged Fast Ethernet switch with 8 10/100BaseT(X) ports, 12/24/48 power input, metal housing, -40 to 75 °C operating temperature

Ethernet interface
10/100BaseT(X) ports (RJ45 connector):
– EDS-2008-EL: 8
– EDS-2008-EL-M-ST: 7
– EDS-2008-EL-M-SC: 7
– Full/half-duplex mode
– Auto MDI/MDI-X connection
– Automatic speed negotiation
– 100BaseFX ports (multi-mode SC connection): EDS-2008-EL-M-SC: 1
– 100BaseFX ports (multi-mode ST connection): EDS-2008-EL-M-ST: 1
Standards:
– IEEE 802.3 for 10BaseT
– IEEE 802.3u for 100BaseT(X) and 100BaseFX
– IEEE 802.3x for flow control
– IEEE 802.1p for Class of Service

Switch properties
– Processing type: Store and forward
– MAC table size: 2 K
– Packet buffer size: 768 kbits

DIP switch configuration
– Ethernet interface: Quality of Service (QoS) , Broadcast Storm Protection (BSP)

Performance parameters
– Connection: 1 detachable 2-contact terminal block(s)
– Input current: EDS-2008-EL: 0.052A @ 24 VDC, EDS-2008-EL-M-ST/EDS-2008-EL-M-SC: 0.082A @ 24 VDC
– Input voltage: 12/24/48 VDC
– Operating voltage: 9.6 to 60 VDC
– Overload current protection: Supported
– Reverse polarity protection: Supported

Physical characteristics
– Installation: DIN rail mounting, wall mounting (with optional kit)
– Weight: 169 g (0.37 lb)
– Housing: Metal

Dimensions:
– EDS-2008-EL: 36 x 81 x 65 mm (1.4 x 3.19 x 2.56 in)
– EDS-2008-EL-M-ST: 36 x 81 x 70.9 mm (1.4 x 3.19 x 2.79 in) (with connector)
– EDS-2008-EL-M-SC: 36 x 81 x 68.9 mm (1.4 x 3.19 x 2.71 in) (with connector)

Ambient conditions
– Relative humidity: 5 to 95% (non-condensing)

Operating temperature:
– EDS-2008-EL/EDS-2008-EL-M-SC/EDS-2008-EL-M-ST: -10 to 60°C (14 to 140°F)
– EDS-2008-EL-T/EDS-2008-EL-M-SC-T/EDS-2008-EL-M-ST-T: -40 to 75°C (-40 to 167°F)

– Storage temperature (including packaging): -40 to 85°C (-40 to 185°F)

Standards and certifications
– Safety: UL 61010-2-201, EN 62368-1
– EMC: EN 55032/35, EN 61000-6-2/-6-4
– EMI: CISPR 22, 32, FCC Part 15B Class A

EMS:
– IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
– IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
– IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
– IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
– IEC 61000-4-6 CS: 10 V
– IEC 61000-4-8 PFMF

– Shock: IEC 60068-2-27
– Vibration: IEC 60068-2-6
– Free fall: IEC 60068-2-32

MTBF
Time:
– EDS-2008-EL: 3.696,394 hours
– EDS-2008-EL-M-SC/ EDS-2008-EL-M-ST: 3,329,688 hours
– Standards: Telcordia (Bellcore), GB
