The UPort series of USB hubs is industrial-grade and designed with the ruggedness and reliability needed for industrial applications. Each port has ESD Level 4 protection and provides Super-Speed USB 3.2 data rates up to 5 Gbps—even for heavy-load applications. The UPort Series includes models with dual power inputs, DIN-rail mounting options, and wide temperature models that operate reliably even in harsh conditions.

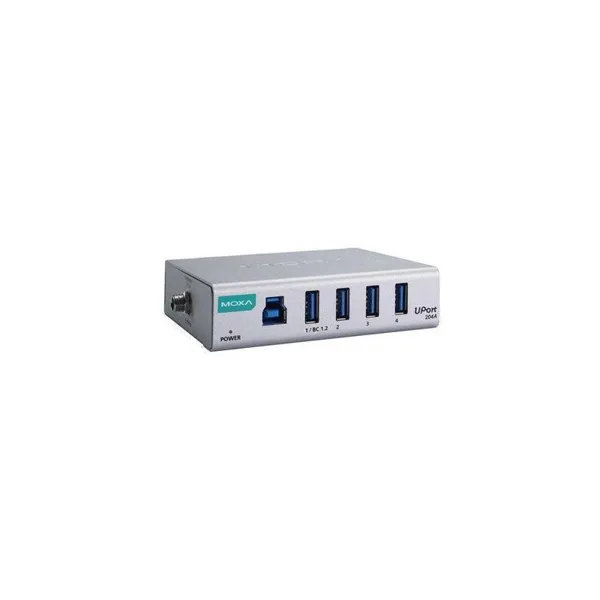

4-port general-purpose USB 3.2 hubs

USB Interface
– USB Standards
USB 1.1/2.0 compliant
USB 3.2 Gen 1
– Speed 5 Gbps
– USB Connector
UFP: type B
DFP: type A
– No. of USB Ports 5 (UFP: 1, DFP 4)

Power Parameters
– Input Voltage No. of power inputs: 1, 12 VDC
– Power Connector Power jack
– Power Consumption 2.65 A @ 12 VDC
– Reverse Polarity Protection Supported
– Output Power Rating
Port 1: 900 / 1500 mA @ 5 VDC (BC 1.2 compatible)
Rest of ports: 900 mA @ 5 VDC

Physical Characteristics
– Housing Metal
– Dimensions 85 x 27 x 100 mm (3.35 x 1.06 x 3.94 in)
– Weight 208 g (0.46 lb)
– Installation DIN-rail mounting (with optional kit), Wall mounting (with optional kit)

Environmental Limits
– Operating Temperature 0 to 60°C (32 to 140°F)
– Storage Temperature -20 to 75°C (-4 to 167°F)
– Ambient Relative Humidity 5 to 95% (non-condensing)

Standards and Certifications
– EMC EN 55032/35
– EMI CISPR 32, FCC Part 15B Class A
– EMS
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m
IEC 61000-4-8 PFMF
– Safety EN 62368-1, UL 62368-1, KC
– Environmental Testing IEC 60068-2-1
– Freefall IEC 60068-2-34

Declaration
– Green Product RoHS, CRoHS, WEEE

MTBF
– Standards Telcordia (Bellcore), GB
– Time 2,678,801 hrs
