Triton – RAX-RK-H80-X1 – Roller set with reinforcement frame 800×1100 for RDA load capacity 1900 kg

Brand:
Triton

443,07 €

incl. 19% VAT plus shipping costs

Castors with reinforcement frame for the RTA, RDA, RDE, RYA type distributors must be ordered according to the enclosure layout. The maximum load capacity when using RAX-RK-Hxx-X1 is: – 1600 kg for the RTA, RYA type, – 1900 kg for the RDA, RDE type….

Show article information
When you purchase this item you will receive. 443 Points
Bulk PriceQuantity (from)Quantity (to)
443,07 € 1 499
439,15 € 500 999
435,23 € 1.000 2.499
431,31 € 2.500 ∞
Delivery time: 7-9 Workdays
Add to quote request
SKU 396105
EAN 4251876869253
MPN RAX-RK-H80-X1
Categories , ,
Tags , ,

Castors with reinforcement frame for the RTA, RDA, RDE, RYA type distributors must be ordered according to the enclosure layout.

The maximum load capacity when using RAX-RK-Hxx-X1 is:

– 1600 kg for the RTA, RYA type,
– 1900 kg for the RDA, RDE type.

The enclosure height is increased by 168 mm.

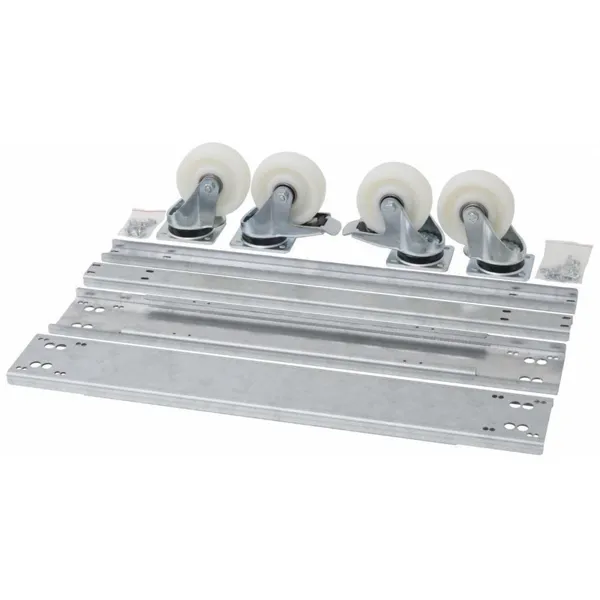

Set of
Castors with brakes ………………………. 2x
Castors without brakes ……………………. 2x
Screws M5 x 12 Thorx ……………….. 16x
Screws M5 x 20 Thorx ……………….. 16x
Large washers 5.3 ……………. 16x
U-profile……………………………………………… 4x

Distributor depth (mm): 800
Distributor width (mm): 1100
